Why Deep River Basements Face Unique Water Intrusion Challenges
Deep River, located along the Ottawa River in the Upper Ottawa Valley, sits within the Canadian Shield geological region. This means the town and surrounding areas of Laurentian Hills, Chalk River, Rolphton, and communities west toward Petawawa are built on a combination of exposed granite bedrock, shallow soils, and clay-filled pockets left by glacial retreat thousands of years ago.
The proximity of the Ottawa River and the elevation runoff from the Laurentian Highlands means that water moves aggressively through this region during spring snowmelt. Homes built on slabs or with full basements in low-lying neighbourhoods near the river corridor are especially prone to hydrostatic pressure buildup against foundation walls. When spring temperatures rise and the deep frost line (roughly 4–5 feet in Renfrew County) thaws, meltwater has nowhere to go but down — and against your basement walls.
The Canadian Shield bedrock creates an additional complication: when bedrock sits close to the surface, it can direct groundwater sideways rather than allowing it to percolate downward. This lateral movement pushes water directly at foundation footings and walls, increasing the likelihood of basement seepage, particularly after heavy rainfall or rapid snowmelt events.
Renfrew County clay soils, common in low-lying areas along the Ottawa River floodplain, hold water against foundations long after rainfall ends. Expansive clay can also shift with moisture changes, creating stress on foundation walls that leads to cracking over time.
Basement Waterproofing Cost Ranges — Deep River & Area
Costs below reflect typical ranges for Renfrew County properties in 2026. Actual pricing depends on foundation depth, soil conditions, Canadian Shield rock obstacles, and the specific waterproofing method selected.
| Waterproofing Method | Typical Cost Range (CAD) | Best For |
|---|---|---|
| Interior perimeter drain tile | $3,000 – $7,000 | Existing basements with minor to moderate water entry; no excavation needed |
| Sump pump installation (pedestal or submersible) | $800 – $2,500 | Basements with standing water issues; primary water removal |
| Exterior excavation waterproofing | $8,000 – $25,000 | Severe water intrusion; replacing failed weeping tile; full foundation protection |
| Foundation crack injection (per crack) | $300 – $1,200 | Isolated active cracks; hairline to moderate width |
| Interior wall sealant / coating | $1,500 – $4,000 | Minor dampness; used with drainage system |
| Window well drainage system | $400 – $1,500 | Window well leaks; each window |
| Exterior French drain / yard drainage | $2,000 – $6,000 | Surface water drainage away from foundation |
Basement Waterproofing Topics
Basement Waterproofing Methods
Interior vs exterior approaches explained. Membrane systems, drainage boards, weeping tile, and when each method applies in Canadian Shield conditions.
Read GuideInterior Drainage Systems
Interior drain tile, sump pump types, battery backups critical for power outages common in the Upper Ottawa Valley. Installation and maintenance guide.
Read GuideFoundation Crack Repair

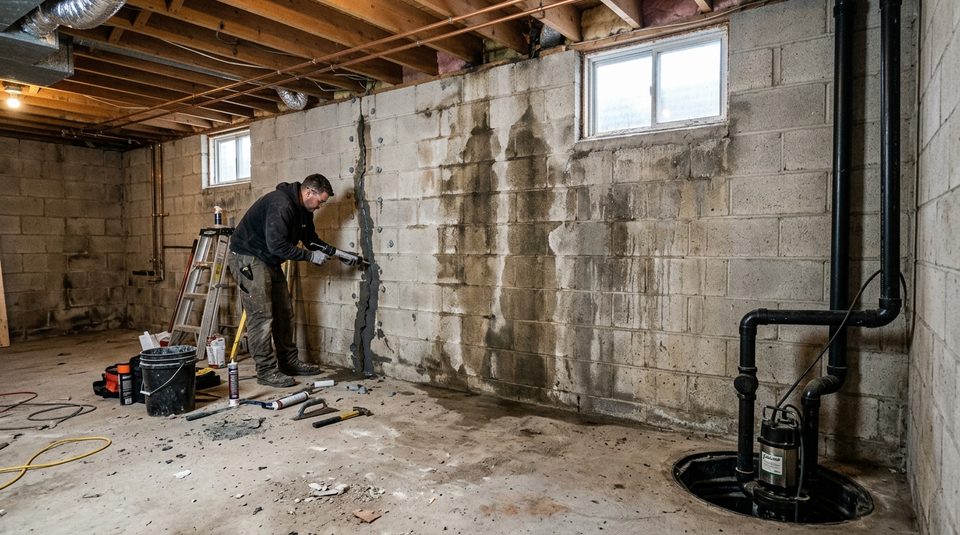

Hairline vs structural cracks, polyurethane injection, epoxy repair, carbon fibre straps. How freeze-thaw cycles and frost heave affect Deep River foundations.
Read GuideCost Guide
Detailed pricing breakdown for all waterproofing methods. Understand cost drivers including excavation depth, rocky Shield soil, and access constraints.
Read GuideCommunities We Cover
This resource serves property owners throughout Renfrew County and the Upper Ottawa Valley, from the Ottawa River shoreline communities north of Petawawa to the villages scattered along the Laurentian Highlands.
Frequently Asked Questions About Basement Waterproofing in Deep River
How much does basement waterproofing cost in Deep River?
Costs typically range from $3,000–$7,000 for interior drainage systems to $8,000–$25,000 for full exterior excavation waterproofing. Rocky Canadian Shield conditions can add 15–25% to excavation costs compared to areas with deep topsoil.
Does every home in Deep River need basement waterproofing?
Not every home leaks, but most homes in Deep River and surrounding areas benefit from some level of waterproofing due to the high water table, proximity to the Ottawa River, and Canadian Shield groundwater dynamics. A professional assessment is the best way to determine your specific needs.
What causes basement leaks near the Ottawa River?
Hydrostatic pressure from the rising water table during spring melt, clay-heavy soils that hold water against foundations, frost heave during freeze-thaw cycles, and poor surface grading all contribute. Snowmelt runoff from the Laurentian Highlands adds significant water volume each spring.
Is interior or exterior waterproofing better for Deep River homes?
Both methods serve different purposes. Interior drainage is cost-effective for managing water that enters the basement, while exterior waterproofing addresses the source by directing water away from the foundation before it reaches the wall. Many homeowners in Renfrew County opt for both for comprehensive protection.
Do I need a permit for waterproofing in Ontario?
Exterior excavation typically requires a building permit from the Renfrew County Building Department. Interior drainage work that involves cutting the concrete slab also generally requires a permit. Always verify before starting any waterproofing project.
What is a sump pump and why is it important in Deep River?
A sump pump collects groundwater from around your foundation and discharges it away from the home. In Deep River, where power outages are common during spring ice storms and summer thunderstorms, a battery backup sump pump system is highly recommended for uninterrupted protection.
Ontario Building Code & Renfrew County Requirements
Basement waterproofing in Ontario is governed by Part 9 of the Ontario Building Code (O. Reg. 332/12), which sets minimum foundation drainage requirements. Most Renfrew County municipalities adopt the standard OBC provisions, but property owners should always confirm with the Renfrew County Building Department before beginning any exterior excavation or structural foundation work. Interior drainage system installations that require cutting of the foundation slab also generally require a permit under the Ontario Building Code.
Waterproofing contractors in Ontario are not required to hold a specific provincial licence, but any contractor performing excavating work must carry WSIB (Workplace Safety and Insurance Board) coverage. Verifying insurance and WSIB status before hiring is an essential step in protecting your property and yourself.
